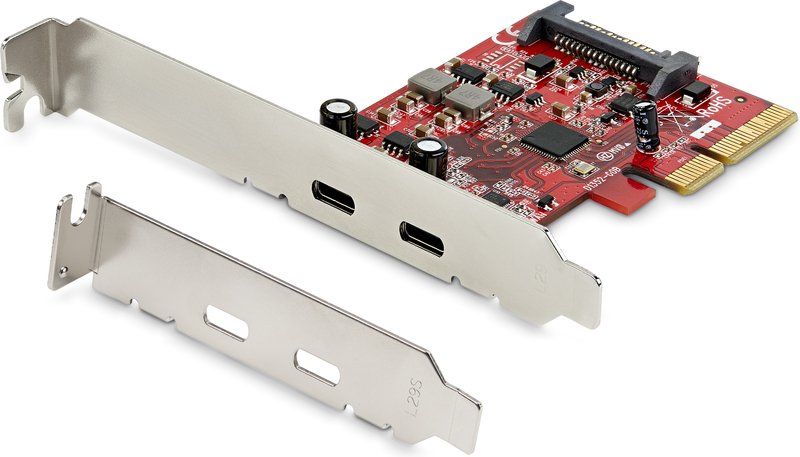

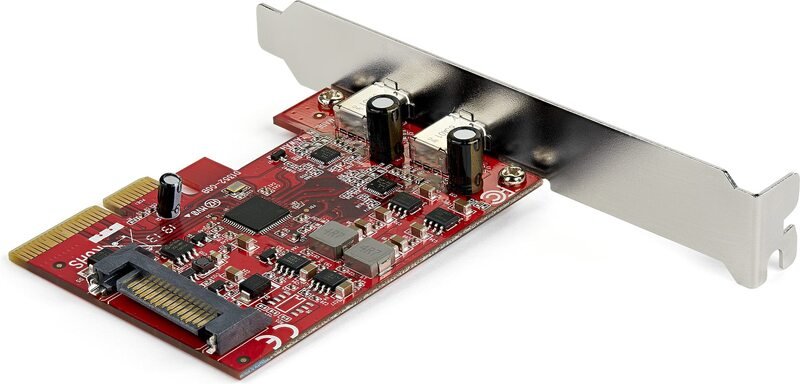

StarTech 2-Port PCIe USB 3.1 Card – USB-C, USB 3.1 Gen 2 (10 Gbps)

The StarTech.com 2-Port PCIe USB 3.1 Card provides two high-speed USB-C ports with USB 3.1 Gen 2 support for data transfer speeds of up to 10 Gbps.
This PCI Express 3.0 expansion card can be easily installed in a desktop PC and adds extra USB-C ports for connecting external storage devices, rechargeable devices, and more.
The card is compatible with a wide range of operating systems and offers a convenient way to expand the USB-C connectivity of your PC.

Key Specifications

• Brand: StarTech

• USB 3.2 Gen2 Type-C Ports: 2x

• PCI Express Version: PCI-E 3.0

• Available Since: May 2020

• EAN: 65030887434

• Vendor Code: PEXUSB312C3

• Warranty: 24 months

Certifications

• Compliance Certificates: CE, RoHS

• Certifications: CE, FCC, REACH

Design

• Internal: ✓

• Product Color: Red

Dimensions & Weight

• Width: 80 mm

• Depth: 122 mm

• Height: 18 mm

• Weight: 45 g

Package Contents

• User Manual: ✓

• Mounting Brackets Included: ✓

Ports & Interfaces

• USB 3.2 Gen2 Type-C: 2x

• Connection: PCI Express

• Output Interface: USB 3.2 Gen1 (3.1 Gen1)

• Low Profile Bracket: ✓

• PCI Express Version: PCI-E 3.0

Performance

• Maximum Data Transfer Speed: 10 Gbps

• Supported Server Operating Systems: Windows Server 2008 R2, 2012, 2016, 2019

• UASP Support: ✓

Software Compatibility

• Linux Support: ✓

• Mac OS Support: Mac OS X 10.13 High Sierra, 10.14 Mojave, 10.15 Catalina, 11.0 Big Sur, 12.0 Monterey, 13.0 Ventura

Technical Details

• Chipset: ASMedia ASM3142

• Sustainability Compliance: ✓

Product Information

• EAN: 65030887434

• Vendor Code: PEXUSB312C3

• Article Number: 1107329

• Brand: StarTech

• Warranty: 24 months

• Available Since: May 2020
