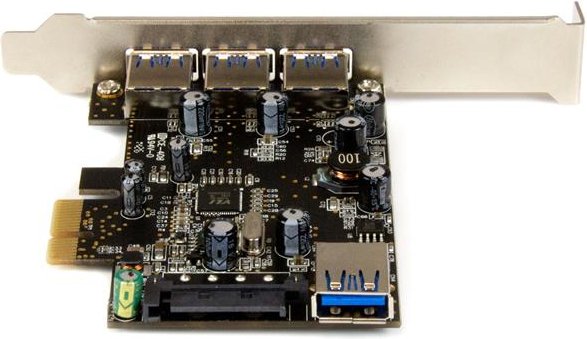

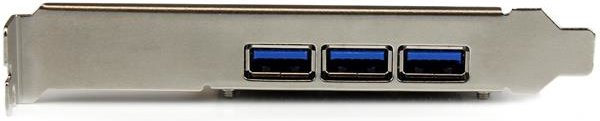

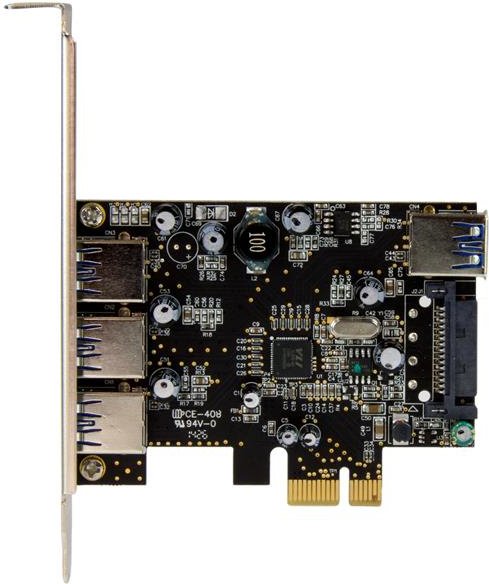

StarTech 4-Port PCI Express USB 3.0 Card – USB 3.2 Gen1 Type-A

The StarTech.com 4-Port PCI Express USB 3.0 Card provides a simple way to expand your computer’s USB capabilities.
With 4 ultra-fast USB 3.2 Gen1 Type-A ports, this card adds extra USB connectivity via a PCI Express 2.0 slot.
It supports a wide range of USB devices and offers an efficient solution to customize your system according to your needs.

Key Specifications

• Brand: StarTech

• USB 3.2 Gen1 Type-A Ports: 4x

• PCI Express Version: PCI-E 2.0

• Available Since: October 2016

• EAN: 65030860321

• Vendor Code: PEXUSB3S42

• Warranty: 24 months

Certifications

• Compliance Certificates: RoHS

• Certifications: CE, FCC

Design

• Internal: ✓

• Product Color: Black, Stainless Steel

Dimensions & Weight

• Width: 15 mm

• Depth: 167 mm

• Height: 120 mm

• Weight: 90 g

Hard Drive Features

• Hot-Swap: ✓

Package Contents

• User Manual: ✓

• Included Drivers: ✓

• Mounting Brackets Included: ✓

Ports & Interfaces

• USB 3.2 Gen1 Type-A: 4x

• Connection: PCI Express

• Output Interface: USB 3.2 Gen1 (3.1 Gen1)

• Low Profile Bracket: ✓

• PCI Express Version: PCI-E 2.0

Performance

• Maximum Data Transfer Speed: 5 Gbit/s

• Maximum Cable Length: 3 m

• Supported Server Operating Systems: Windows Server 2008 R2, Windows Server 2012

• UASP Support: ✓

Software Compatibility

• Linux Support: ✓

Technical Details

• Chipset: 2 x Renesas / NEC µPD720202

Product Information

• EAN: 65030860321

• Vendor Code: PEXUSB3S42

• Article Number: 991525

• Brand: StarTech

• Warranty: 24 months

• Available Since: October 2016
